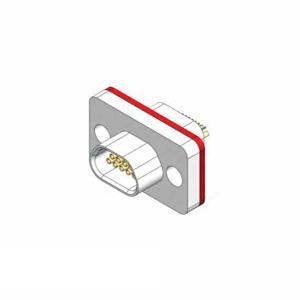

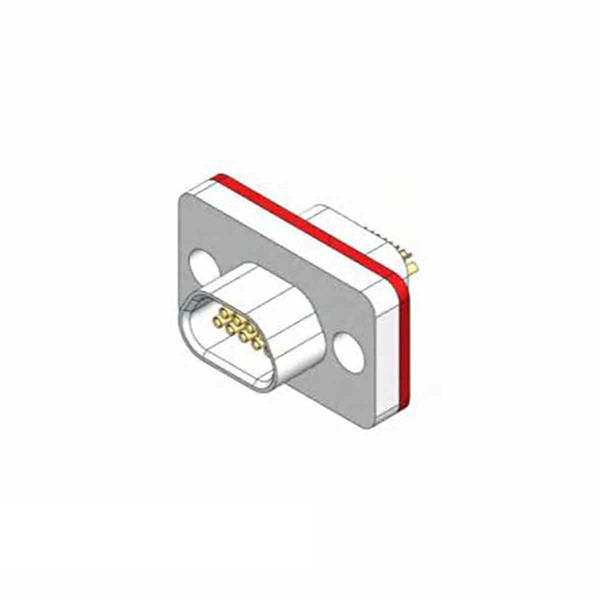

Discover the HUADA J30JM-15ZKS Micro Connector: Precision and Reliability

The HUADA J30JM-15ZKS micro rectangular electrical connector combines precision engineering with military-grade reliability. With a contact spacing of 1.27mm and row spacing of 1.1mm, it’s ideal for space-constrained applications. This connector meets the rigorous requirements of GJB 2446 and is equivalent to the US military standard MIL-DT-83513. Whether you’re designing aerospace systems or advanced electronics, trust the J30JM-15ZKS for seamless connectivity.

Technical Specifications of the HUADA J30JM-15ZKS Connector

Operating Temperature: The J30JM-15ZKS can withstand temperatures ranging from -55°C to +125°C, making it suitable for both extreme cold and high-temperature environments.
Relative Humidity: It performs reliably even in environments with up to 95% relative humidity at 40°C.
Low Gas Pressure: Designed to operate at low gas pressures (4.5 kPa), it’s ideal for applications where pressure variations occur.
Vibration Resistance: The connector can handle vibrations in the frequency range of 10 Hz to 2000 Hz, with an acceleration of 196 m/s². This robustness ensures stability in demanding conditions.
Shock Resistance: Withstands shocks up to 735 m/s² (11 ms²), making it suitable for rugged environments.
Rated Current: The J30JM-15ZKS supports a current of up to 3 A, making it versatile for various applications.
Contact Resistance: The connector exhibits low contact resistance, measuring ≤ 10 mΩ, ensuring efficient electrical conductivity.
Insulation Resistance: It maintains high insulation resistance, exceeding 5000 MΩ, preventing leakage and ensuring signal integrity.
Dielectric Strength: The connector can withstand voltages up to 800 V, providing reliable insulation.
Durability: With a minimum of 500 mating cycles, it’s built for long-lasting performance.

Technical Features Table:
