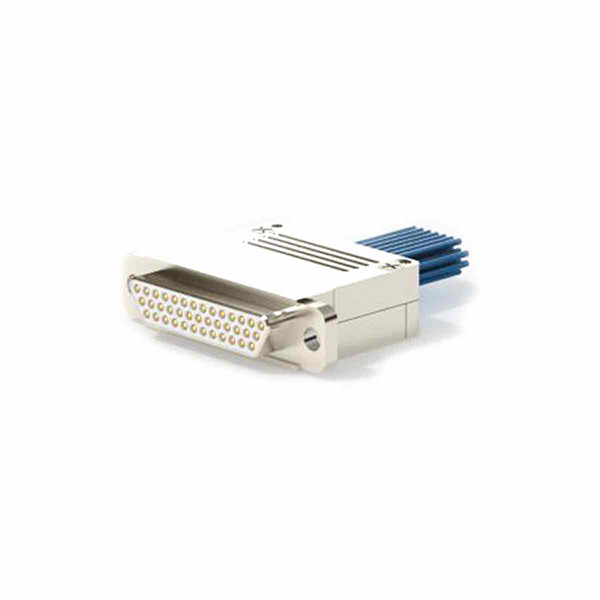

Discover the HUADA ZMDM-31PH2 Connector: Compact, Reliable, and Efficient

The HUADA ZMDM-31PH2 connector redefines compactness without compromising on performance. With dimensions 2.78mm shorter in length, 5.4mm narrower, and 3.9mm lower than its predecessor (the J29A series), this micro rectangular connector is a space-saving marvel. Whether you’re designing for aerospace, telecommunications, or industrial applications, the ZMDM-31PH2 delivers reliability and efficiency. Its impressive technical features include a maximum operating temperature of +125°C, excellent insulation resistance (5000 mΩ), and a robust mechanical life of 500 cycles. Say goodbye to bulk and hello to streamlined connectivity.
The ZMDM-31PH2 connector thrives in challenging conditions. It withstands impact forces of 490m/s² and vibrations from 10Hz to 2000Hz at 196m/s². With a low contact resistance of 8 mΩ and pressure resistance up to 800V, it ensures stable electrical connections even in harsh environments. Whether you’re upgrading existing systems or designing cutting-edge electronics, the HUADA ZMDM-31PH2 is your go-to solution. Compact, reliable, and ready to perform – it’s time to elevate your designs with this micro connector.

Key Features of the HUADA ZMDM-31PH2 Connector

Product Attributes: Manufacturer: The ZMDM-31PH2 connector is manufactured by ITT Cannon, a reputable name in the industry.
Number of Positions: It features 31 positions, providing versatility for various applications.
Number of Rows: With 2 rows, it ensures efficient signal transmission.
Termination Style: The crimp termination style simplifies installation.
Mounting Angle: Designed for straight mounting.
Mounting Style: Panel-mounted, making it suitable for control panels and enclosures.
Contact Material: The connector’s contacts are made of durable copper alloy.
Contact Plating: Gold plating ensures reliable conductivity.
Technical Specifications: Maximum Operating Temperature: With a maximum operating temperature of +125°C, it performs reliably even in demanding environments.
Minimum Operating Temperature: It remains functional down to -55°C, suitable for extreme conditions.
Insulation Resistance: Impressive insulation resistance of 5000 mΩ ensures signal integrity.
Mechanical Life: The connector withstands 500 cycles of mating and unmating.
Impact Resistance: It can handle an impact of 490m/s², making it robust.
Vibration Resistance: Tested at 10-2000Hz with 196m/s² vibration tolerance.
Relative Humidity: Operates well at 40°C with 98% humidity.
Product Availability: Stock Availability: Currently, we have 11 units in stock.
Lead Time: For larger quantities, the factory lead time is approximately 16 weeks.
Datasheet and More Information: Explore the detailed specifications in the MDM-31PH003B Datasheet.

Technical Features Table:
