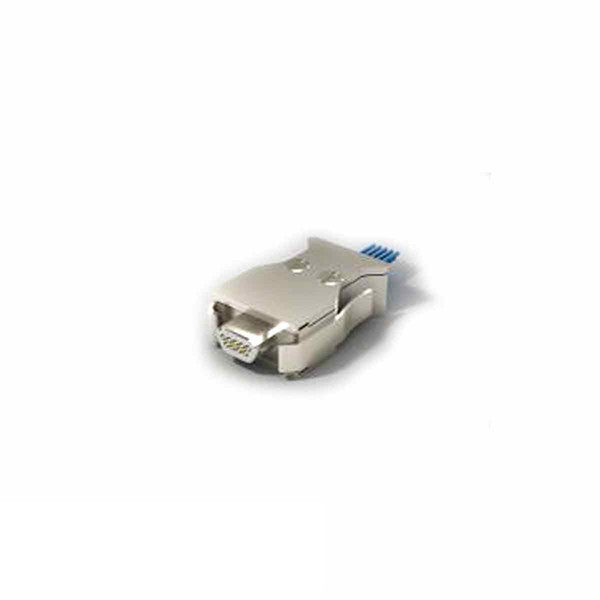

HUADA Micro Rectangular Connector CDbA-9TYSM1: High-Performance Cores, 1.27mm Contact Spacing

Elevate your electrical connections with the HUADA micro rectangular electrical connector CDbA-9TYSM1. Featuring a contact spacing of 1.27mm and a row spacing of 1.1mm, this connector ensures precise and secure connections for your projects. With a crimping cross-sectional area suitable for wire sizes from 0.05mm² to 0.15mm², this connector offers versatility and reliability. Operating efficiently in temperatures ranging from -55°C to +125°C, this connector is designed to withstand challenging environments. Trust the HUADA connector for robust performance in demanding applications

Key Features of the High-Performance Micro Rectangular Connector: CDbA-9TYSM1

The HUADA CDbA-9TYSM1 micro rectangular electrical connector is meticulously engineered for precision and reliability. Let’s explore its key attributes:

Versatile Cores: Choose from 9 to 100 cores, allowing flexibility for various applications.

Compact Design: With a contact spacing of 1.27mm, this connector optimizes space utilization.

Temperature Resilience: Operating seamlessly from -55°C to +125°C, it withstands extreme conditions.

Crimping Compatibility: Accommodates wire sizes ranging from 0.05mm² to 0.15mm².

Longevity: Expect 500 mechanical life cycles, ensuring enduring connections.

Low Contact Resistance: Only 8 mΩ for reliable conductivity.

Pressure and Vibration Tolerance: Handles up to 4.4 KPa work pressure and endures vibrations from 10~2000Hz at 196m/S².

Insulation and Impact: Insulation resistance of 5000 mΩ and impact resistance of 490 m/s².

Electrical Safety: Pressure resistant up to 600 V.

Humidity Endurance: Works flawlessly at 40°C with 96% relative humidity.

Technical Features Table:
